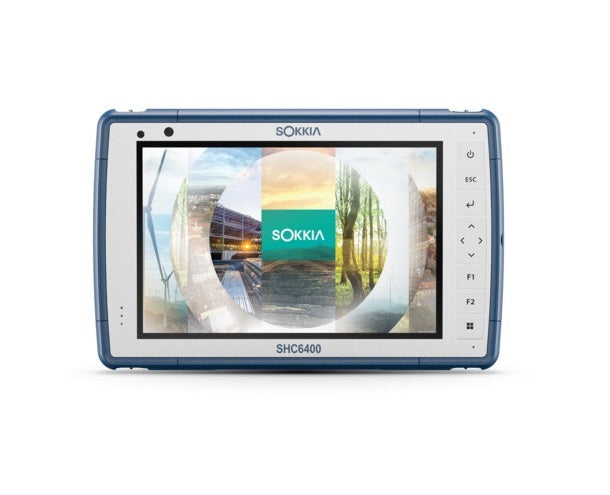

Sokkia SHC6400

Your daily field computer

Bring office-level processing speed directly to your project site.
Stay connected, productive, and in control with the SHC6400
field computer.
Like all our solutions, you can customize the SHC6400 to meet
your needs and create your own workflows.

• Sunlight-readable 7-inch display
• Intel® N200 3.7 GHz processor
• MIL-STD-810H and IP68 certified
• Windows® 11 Pro operating system
• 13 MP rear camera, 5 MP front camera
• Integrated 4G LTE cellular module

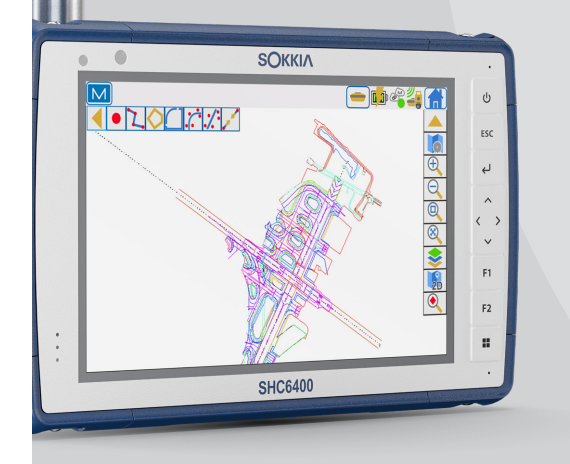

A brilliant, clear screen
The broad 7-inch screen is specifically designed for viewing
in direct sunlight. It provides a clear, easy-to-read display with
a responsive touchscreen interface.

Ready for the elements
The field-ready IP68 environmental rating certifies that the unit
is protected against dust and is waterproof for up to two hours
at a one-meter depth. The SHC6400 has been independently
certified as MIL-STD-810H and can operate in temperatures
from -20° C to 50° C.

Stay connected
Bluetooth® and Wi-Fi communication come
standard on the SHC6400 and are ideal options
to connect and drive any Sokkia GNSS receiver
or optical total station out to distances of 500
meters. Plus, using local Wi-Fi or the built-in
cell connection you can upload the day’s work
before leaving the project site, cutting down on
return trips to the office.

Power on the go
The unit is built for speed with an Intel® N200
3.7 GHz processor, which easily drives Sokkia
software or other software options, and can
work with your large design files.

Point and snap
Two built-in digital cameras offer fast autofocus adjustments including an as-needed LED
flash to capture informative project site images.
All photos are easily associated and instantly
shareable with any field measurement while
using data-collection software.

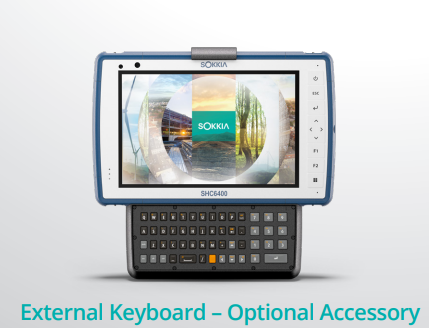

External Keyboard – Optional Accessory
This keyboard is designed for on-the-fly
installation and quickly snaps onto the SHC6400.
No tools are required. The full QWERTY keyboard
features tactile feedback and raised keys. It can
improve performance in cold weather when
operators are wearing gloves.
